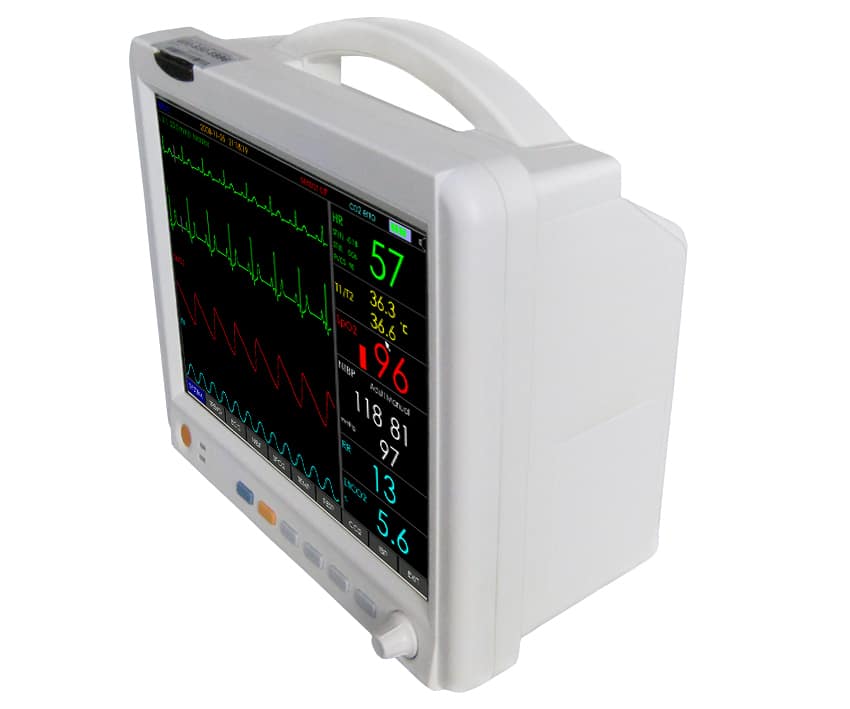

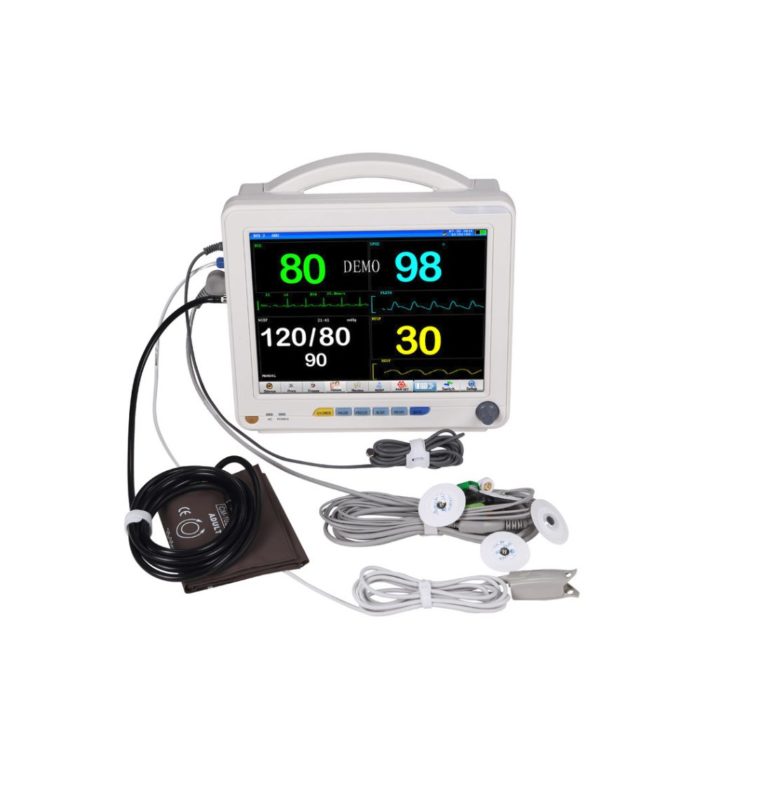

JR2000D Patient Monitor

• Monitoring six parameters: ECG, NIBP, RESP, SPO2, ETCO2, PULSE RATE, and DUAL-TEMP.

• Optional: EICO2, IBP, Recorder, VGA, Central Monitor

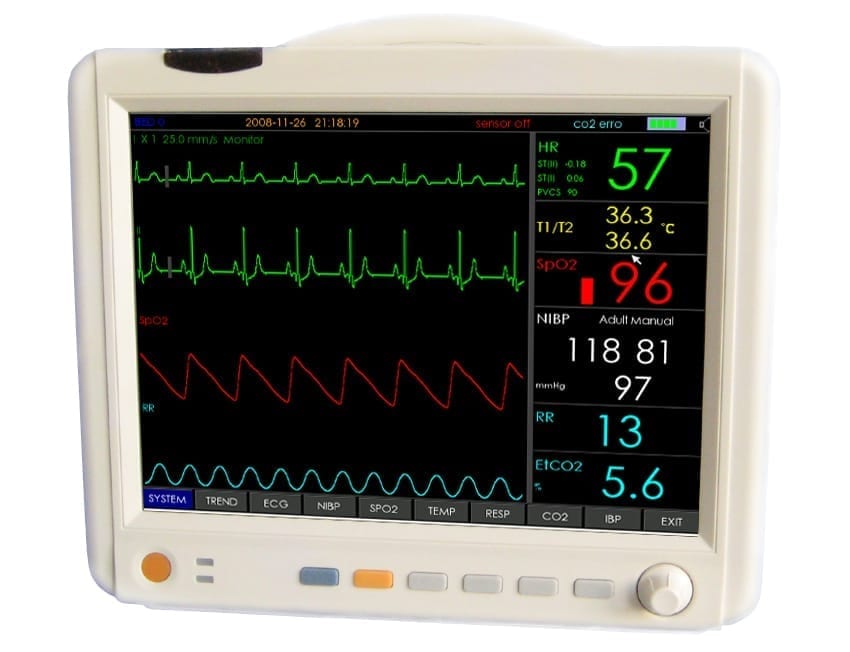

• 12.1″ color TFT screen, OxyCRG Dynamic View Display, Trend coexist display
• 13 Type Arrhythmic Analysis, multi-lead ECG waveforms display in phase
• 15 Type drug calculation and tilration table
• SPO2 can testing for 0.1% Weak, high accuracy
• Over-pressure NIBP protect for patients’ safety
• Anti-ESU, anti- defibrillator, RA-LL impedance
• 72-720 hours large volume of tabular and graphic trends information storage and easy to recall
• Up to 4 hours working capacity of built-in rechargeable battery
• Networking capacity and nurse-calling system

JR2000D Patient Monitor Specifications

• Input: Whole-lead ECG cable, standard AAMI cable connector
• Lead selection:I,II,III avR, avL, avF,c, (v1,v2,v3,v4,v5,v6)
• Gain selection:x 1/4 , x 1/2, x1 , x2
• Sweep speed:12.5, 25, 50mm.s
• Bandwidth:

0.05- 130 Hz ( for diagnosis)

0.5- 40 Hz (for monitor or operation)

• Calibration signal:1mV
• Protection: against electrosurgical interference and defibrilliation

Heart Rate

• Measuring Range: 15- 300 bpm
• Accuracy: ± 1bpm
• Resolution: 1bpm
• Alarm Mode: Audible and visual alarm

RESP

• Method: Resistance on chest
• Measuring Range:7-120 bmp
• Gain Selection: x1/2, x1, x2, x4

Oxygen Saturation (SPO2)

• Measuring Range: 0-100%
• Accuracy: ±2% (70- 100%)

0-69% unspecified

• Method: Oscillometric
• Mode: Manual, Auto, STAT
• Measuring Interval in Auto mode: 1-480 min
• Measuring interval in STAT mode:5 min
• Measuring type: SYS, DIA, MEAN
• Measuring Range:

SYS- 40-270mmHg

DIA- 10 -215mmHg

MEAN- 20-235mmHg

• Resolution: 1mmHg
• Over-pressure protection: Yes-

Adult: 300mmHg

Child:240mmHg

• Measuring range: 0-50°C
• Resolution: 0.1°C
• Accuracy: ±0.2°C

Operation Environment

• Temperature: 0-45°C
• Humidity: 30-85 %
• None condensing

JR2000D Patient Monitor Power Option

• AC power:

100-240 V.

50-60Hz
