CONTEC CMS8000 VET

CONTEC CMS8000 VET Introduction:

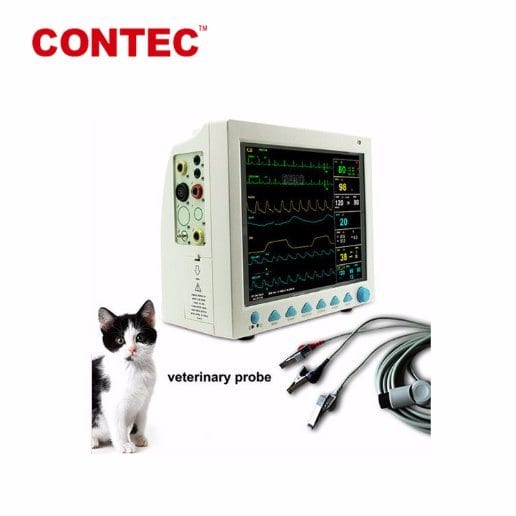

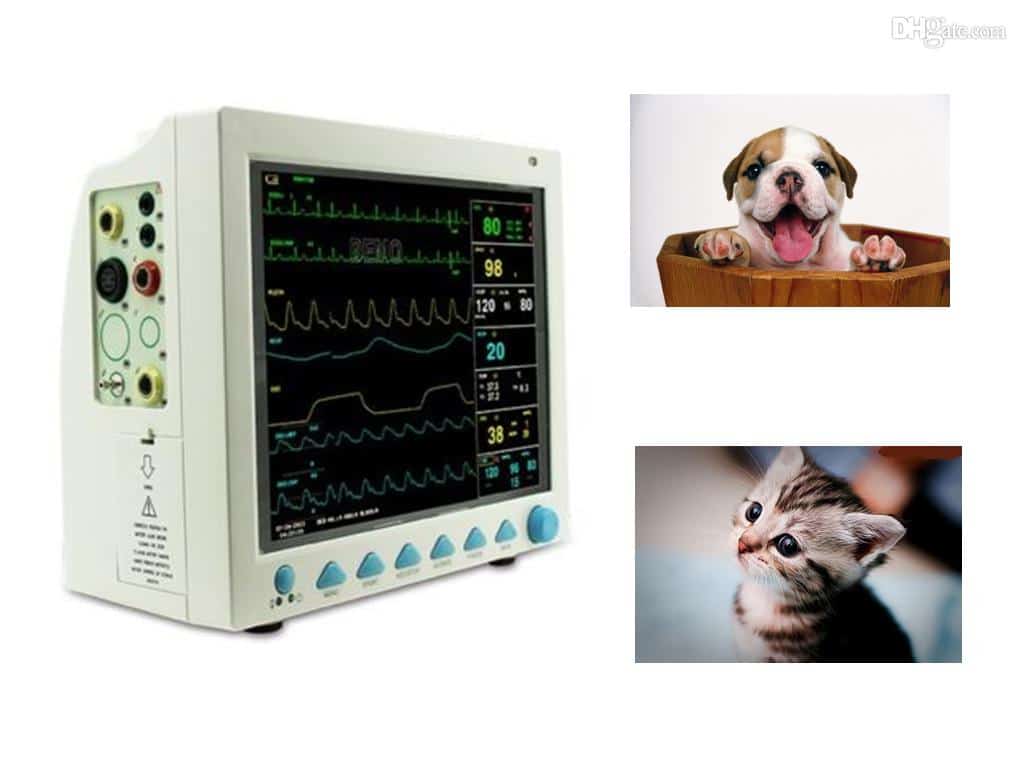

The CMS8000VET Veterinary Monitor has abundant monitoring functions and can be used for monitoring cats, dogs, and other animals.

Users may select different parameter configurations according to different requirements.

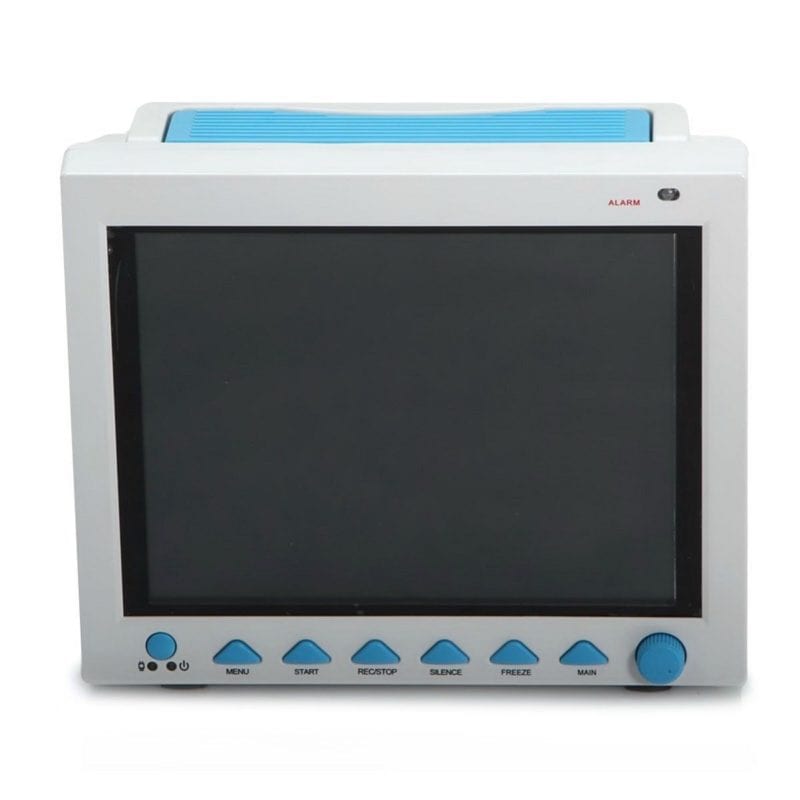

It adopts 100-240V～,50/60Hz for power supply, 12.1” TFT color LCD for displaying real-time data and waveform, and up to 8-channel waveform and all monitoring parameters can be displayed simultaneously.

In addition, it can be connected to the central monitoring system via a wired/wireless network so as to form a network monitoring system.
This device can monitor such parameters as ECG, RESP, NIBP, SpO2, and dual- channel TEMP, etc.

It integrates parameter measurement modules, displays, and recorders in one device to form compact and portable equipment. At the same time, its built-in replaceable battery provides convenience for moving.

CONTEC CMS8000 VET Functions:

Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP

• ECG Heart rate (HR)
  ECG waveform
  Arrhythmia and ST-segment analysis
• RESP Respiration rate(RR)
  Respiration waveform
• SpO2 Oxygen saturation(SpO2)
  Plethysmogram(PLETH) waveform
  Pulse rate(PR)
  Bar graph
• NIBP Systolic pressure(SYS), Diastolic pressure(DIA), Mean Pressure(MEAN)
• TEMP T1, T2, TD
  It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation, etc

CONTEC CMS8000 VET Features:

• 12.1” TFT color LCD, multi-language interface(Simplified Chinese, Traditional Chinese, English, French, German, Turkish,
• Spanish, Portuguese, Italian, Dutch, Romanian, Russian, Kazakhstan, Polish, Czech).
• Fanless design, quiet, energy-saving, and clean, which reduces the possibility of cross-infection.
• With the standard interface, OxyCRG, trend chard, big character interface, and view bed, convenient to observe.
• Operation mode: keys and buttons.
• Display up to 8-channel waveform on one screen.
• Display 7-lead ECG waveform on one screen, and with ECG step function.
• Adopt digital SpO2 technology, anti-motion, and anti-ambient light interference, and measurement can be performed under
• the circumstance of weak filling.
• NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.
• Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.
• Drug concentration calculation and titration table functions.
• Print trend table data with one-key.
• Connect to Central Monitoring System by 3G, WiFi or wired mode.
• AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.
• Anti-high frequency surgical unit, defibrillation-proof(special leads are necessary).

CONTEC CMS8000 VET Performance:

ECG:

• Lead mode: 3-lead or 5-lead
• Lead selection: I, II, III, aVR, aVL, aVF, V
• Waveform: 5-lead, 2-channel
• 3-lead, 1-channel
• Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, 40mm/mV
• Scan speed: 12.5mm/s, 25 mm/s, 50 mm/s

HR:

• Measurement and alarm range: 15~350bpm
• Accuracy: ±1% or ±1bpm, whichever is greater
• Alarm accuracy: ± 2 bpm
• Resolution: 1 bpm
• ST-segment monitoring:
• Measurement and alarm range: -2.0mV~+2.0mV
• Accuracy: -0.8mv~+0.8mv ±0.04mv or ±10%, whichever is greater
• Other range: unspecified
• Arrhythmia analysis: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2,
• PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
• Pacemaker: yes

RESPIRATION:

• Method: R-F(RA-LL) Impedance
• Respiration rate:
• Measurement and alarm range: 0~150rpm
• Resolution: 1 rpm
• Measurement accuracy: ±2 rpm
• Alarm accuracy: ±3 rpm
• Apnea alarm: 10~40s
• Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s

NIBP

• Method: Oscillometry
• Mode: Manual/AUTO/STAT
• Measurement interval in AUTO mode: 1/2/3/4/5/10/15/30/60/90/120/240/480/960 minutes
• Measurement period in STAT mode: 5 minutes
• Measurement and alarm range: 10 ~ 270 mmHg
• Resolution: 1 mmHg
• Cuff pressure accuracy: ±3 mmHg
• Measurement accuracy:
• Maximal mean error: ±5 mmHg
• Maximal standard deviation: 8mmHg
• Over-pressure protection:
• Other mode: 297±3 mmHg
• Dog mode: 240±3 mmHg
• Cat mode: 147±3 mmHg

SpO2

• Measurement and alarm range: 0 ~ 100%
• Resolution: 1%
• Measurement accuracy: 70%~100%: ±2%;
• 0%~69%: unspecified

PR

• Measurement and alarm range: 30 ~ 250 bpm
• Measurement accuracy: ±2 bpm or ±2%, whichever is greater

TEMP

• Channel: dual-channel
• Measurement and alarm range: 0 ~ 50℃
• Resolution: 0.1 ℃
• Accuracy: ±0.1 ℃
• Power supply: 100-240V～,50/60Hz
• Safety classification: Class I, type CF defibrillation-proof applied part

CONTEC CMS8000 VET Accessories:

• Digital BD7 veterinary tongue-clip SpO2 sensor (1M)
• General digital SpO2 sensor extension cable (2M)
• Neonatal capsule single tube repeatable cuff (6-11cm)
• NIBP extension tube
• 5-lead ECG lead cable (American-Standard)
• ECG veterinary clip (*5)
• Transvaginal TEMP probe
• Power cord
• User Manual

Physical characteristic:

• Dimension: 314mm(L)×145mm(W)×264mm(H)
• Weight: 3.9 Kg
