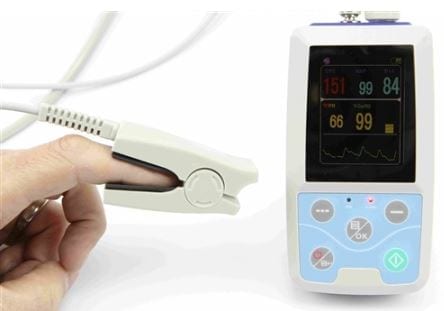

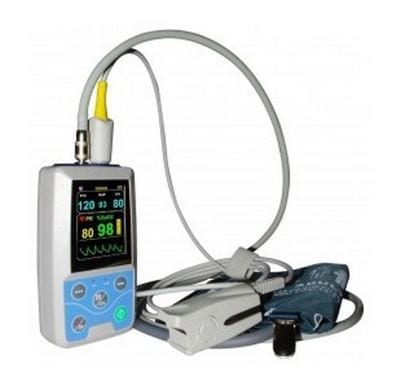

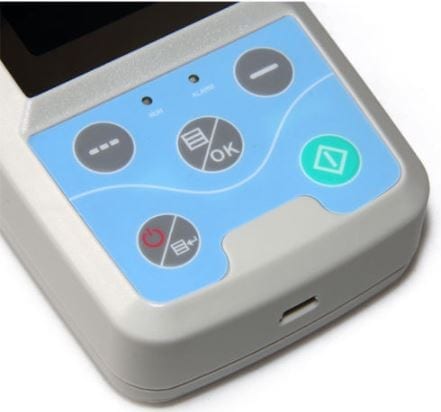

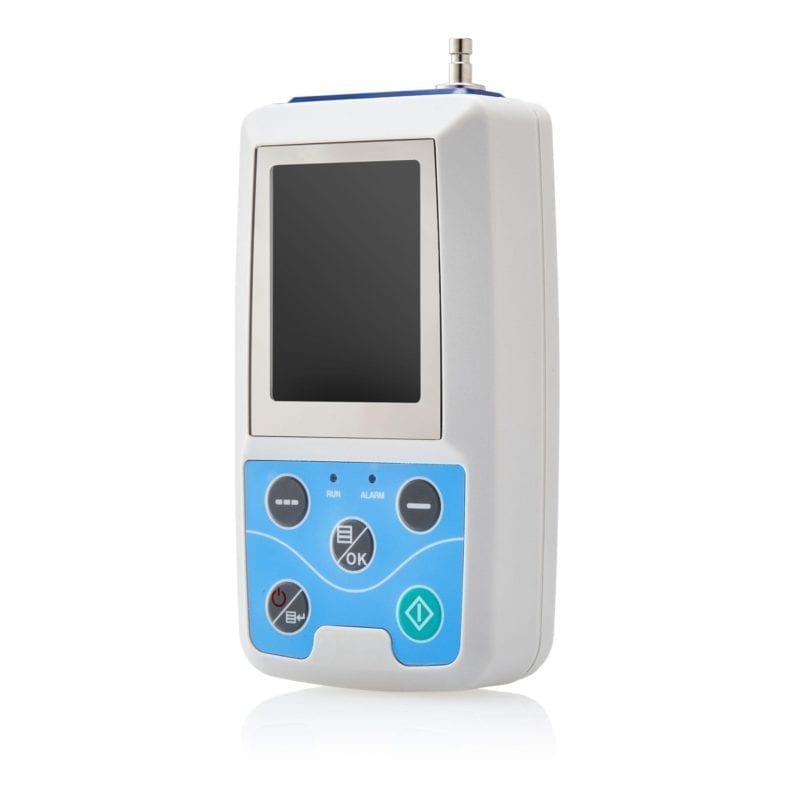

CONTEC PM 50 Patient Monitor Description:
PM50 is a multifunctional patient monitor, it can monitor SPO2 and NIBP for a long time, and applies to the hospital wards or family daily health care.
CONTEC PM 50 Patient Monitor FEATURES:
- Compact and portable, easy to use
- With Integrative SpO2 Probe
- Double working modes,monitoring function and 24 hours ambulatory NIBP measure function can be flexibly set
- NIBP and SpO2 can be monitored for a long time
- NIBP and SpO2 data record for large capacity
- With friendly user interface, the user can see list menu and review measure results
- The device can display low power information, alarm information, error information and time information richly
- Parameter alarm function is optional
- Patient information can be flexibly set
- Case management function.PC software can achieve data review, analysis measure results, seeing trend, printing reports and other functions
MAIN PERFORMANCE:
- NIBP
Measure Method: Oscillometry
Measure Mode: The upper arm measure
Measure range:
ADULT: SYS: 40mmHg~270mmHg
MAP:20mmHg~235mmHg
DIA: 10mmHg~215mmHg
PEDIATRIC: SYS: 40mmHg~200mmHg
MAP: 20mmHg~165mmHg
DIA: 10mmHg~150mmHg
NEONATAL: SYS: 40mmHg~135mmHg
MAP: 20mmHg~110mmHg
DIA: 10mmHg~100mmHg
Automatic measure Interval: 5,10,15,20,30,45,60,90,120 minutes
Resolution: 1mmHg
Accuracy: ±3mmHg
Increasing pressure mode: force pump increases pressure automatically
Reducing pressure mode: self-motion ladder reducing pressure mode
Alarm parameter: SYS / MAP / DIA
- SPO2
Measure range: 0%~100% (Resolution:1%)
Accuracy: 70-100%, ±2%, below 70% unspecified
Error in Weak Filling Condition:
SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
Resistance to surrounding light:
The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
- Pulse Rate
Measuring range:0bpm~250bpm
Resolution:1bpm
Accuracy: ±2 bpm or ±2% (select larger)
- Display: 2.4″ TFT colour LCD
- Power: DC 3V(Two “AA”,1.5V Alkali Battery)
- Product safety type:Type BF applied part (Internally powered,defibrillation-proof)

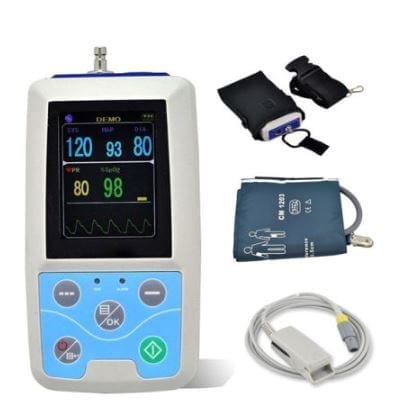

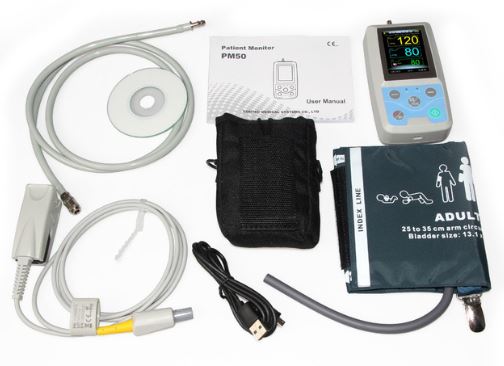

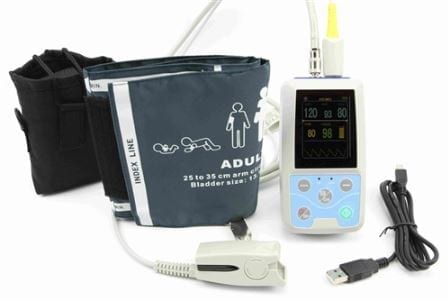

CONTEC PM 50 Patient Monitor ACCESSORIES:
- Cuff for adult, cuff for adult large, and cuff for adult leg(3 pcs in all)
- Integrative SpO2 Probe
- USB data line
- Disk (PC software)
- Pack
- User manual
PHYSICAL IDENTITY:
- Dimension: 128mm*69mm*36 mm (No including Packing)
- Weight: <350g (Including Batteries)
QUALIFICATIONS:
- Passed CE FDA
CONTEC PM 50 Patient Monitor SOFTWARE FUNCTIONS:
- Up to 1000 patient cases can be edited and supervised.
- The time segment of dealing with the patient’s NIBP data is 48 hours.
- Connect the device by USB interface.
- Can upload patient information data collection project and download collection data.
- Can display scoop-shape trend graph,filling-type trend graph, histogram, pie chart, correlation line graph.
- Can edit every piece of data, and add annotation to it.
- Can edit basic information,doctor’s advice information, NIBP and SpO2 status instruction, current medicine-taken information, etc. Support print preview, print the report.
| Weight | 0.350 kg |
|---|---|
| Dimensions | 128 × 69 × 36 cm |
