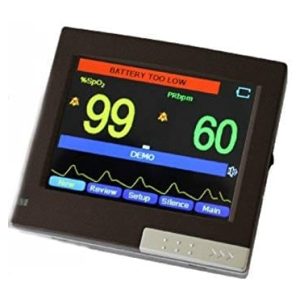

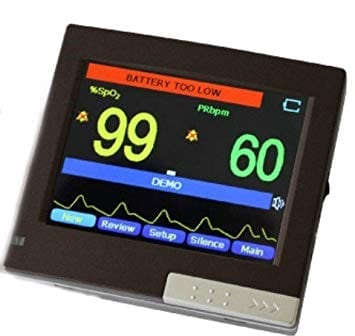

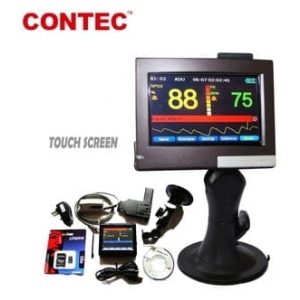

PM 60A Pulse Oximeter FEATURES:
- Routine Check Mode and Continuous Monitoring Mode
- Data Graph and Trend Table Review
- Rich Analysis Report

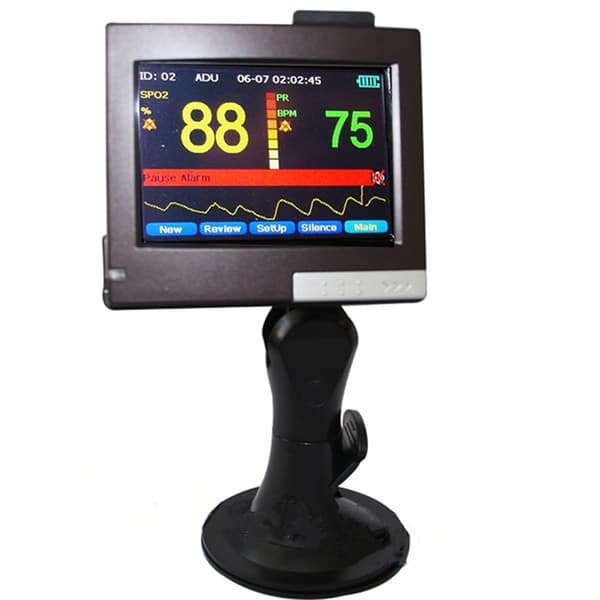

- Perfect Mount Solution

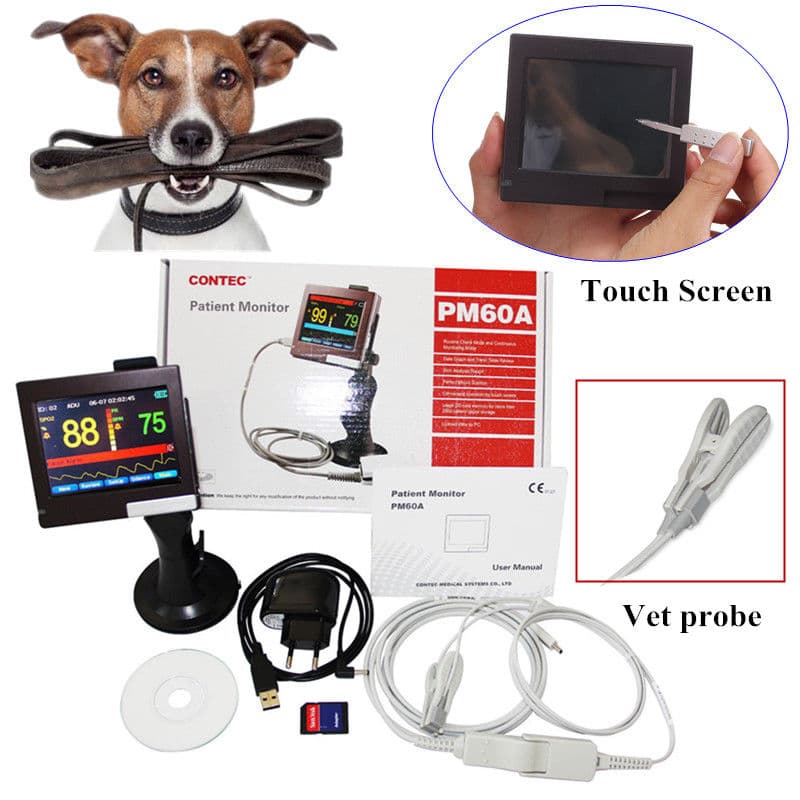

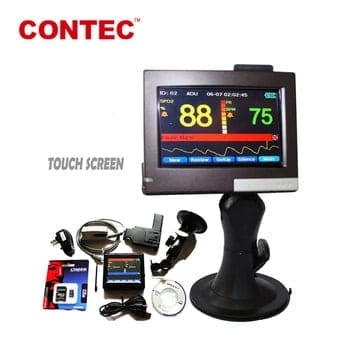

- Convenient operation by touch screen
- Large SD card memory for more than 2000 patient cases storage
- Sync with PC based Software (WinXP and WinVista)
PM 60A Pulse Oximeter SPECIFICATIONS:
| MODEL: | PM-60A |
| DIMENSIONS: | 92MM (W) X 82MM (H) X 22mm (D) |
| WEIGHT: | 136g |
| DISPLAY FORMAT: |
3.5” colour TFT Display Mode: Standard Face, Waveform face Display Direction: adjustable |
| RESOLUTION: | 320 X 240 |
| INDICATOR: | Power indicator light, alarm sound, Pulse tone |
| INTERFACE: | One dual-purpose socket for connecting SPO2 sensors & communication |
| CABLES | |
| POWER SUPPLY: |
DC 5V, <300MA Battery Li-Polymer, 2 hours for charging, 4 hours for continuous working |
| TREND GRAPH: | Resolution from 1s, 5s, 10s. Maximum time 96 hours. |
| TREND TABLE: | Resolution form 1s, 5s, 10s. Review up to 2000 items. |
| ALARM: | Adjustable High and Low Limits. Three level audible and visual alarm |
|
OPERATION ENVIRONMENT: TEMPERATURE: HUMIDITY: |
0ºC – 40 ºC 15% – 95% |
|
STORAGE ENVIRONMENT: TEMPERATURE: HUMIDITY: |
-20ºC – 60 ºC 10% – 95% |
| PATIENT RANGE | Neonate, Pediatric and Adult |
|
SP02: MEASUREMENT RANGE: RESOLUTION: ACCURACY:
ALARM RANGE: REFRESHING RATE:
PULSE RATE: MEASUREMENT RANGE: RESOLUTION: ACCURACY: ALARM RANGE: REFRESHING RATE: |
0 – 100% 1% ±2% (70 – 100% Adult , Pediatric) ±3% (70 – 100% Neonate) 0% – 69% unspecified 0% – 100% 1 s 25 – 250BPM 1BPM ±2BPM or ±2% (select Larger) 25 – 250BPM 1 s |
| QUALITY APPROVAL | CE |
| Weight | 0.136 kg |
|---|---|
| Dimensions | 9.2 × 8.2 × 2.2 cm |
Brand
Contec
