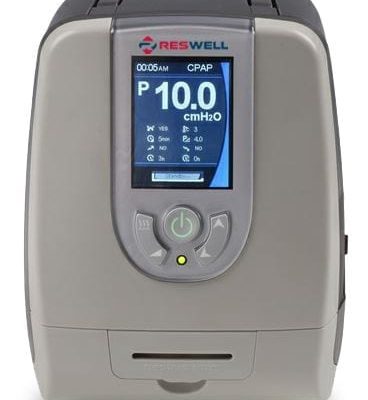

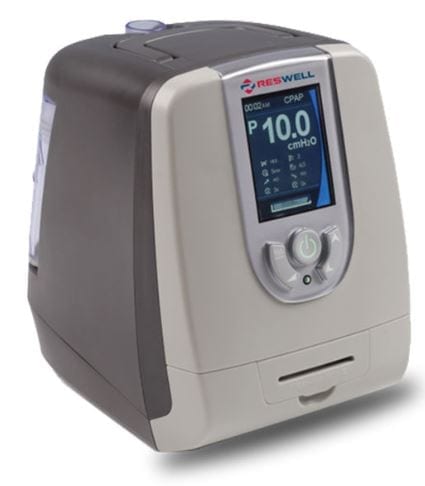

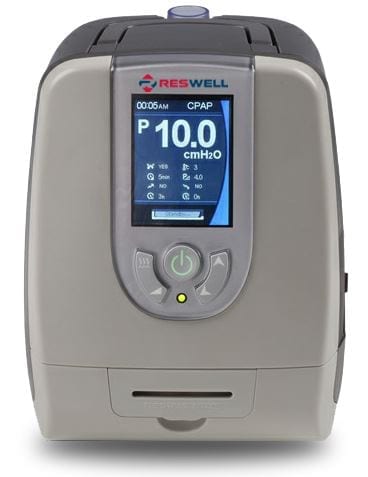

Sleep Apnea Meter RVC830 CPAP DESCRIPTION:
Are intended for use in treating Obstructive Sleep Apnea (OSA) and hypoxemia syndrome triggered by OSA inpatient.
Sleep Apnea Meter RVC830 CPAP FEATURES:
- Larger colorful screen supplying friendly interaction.
- Exclusive EPS pressure variation algorithm, remarkably improving patient comfort and increasing compliance.
- Masking fitting function, make the machine to compatible for all kind of mask in the market
- Optional SpO2 Kit supply more information of the treatment during the whole night
- Enhanced dynamic pressure stability effectively reduce the patient’s work of breathing
- ResView management software allows easy management of patient treatment
- Built-in clock and alarm giving you the regular treating period
- Power failure alert ensure the therapeutic process safety
- Compact design with built-in humidifier Suitable for traveling
- Higher water/dust protection grade, make the device more durable
- Automatic leakage & altitude pressure compensation ensure therapy pressure
- Quiet delivery of the required pressure guaranteeing sleep continuity
- Ramp Function make user falling asleep more comfortably
- Dual backflow prevention technology providing higher protection
- Auto Start & Auto Stop & Display with backlight convenient for operation
- Tube drying technology reduces the condensation in the tubing and mask
- Enjoy the latest updating system by the Remote SD card upgrading function at any time anywhere.
| TECHNICAL SPECIFICATIONS: | |
| Product Series | CPAP Series |
| Mode of Operation | CPAP |
| Power Supply | AC 100-240V, 50/60Hz, <90VA |
| Dimension | 190x150x200mm |
| Weight | 1.7kg |
| Water Capacity | >350ml, in max scale |
| Pressure Range | 4-20cmH2O, 0.5cmH2O increments |
| Pressure Accuracy: | ±0.5cmH2O |
| Sound Pressure Level | <30dB(A) |
| Standard Compliance | IEC60601-1; IEC60601-1-2; ISO17510-1; ISO8185 |
| Operation Environment Range | Temperature: +5℃～ +35℃ |
| Humidity: 10% ～ 95%（ Non-condensing） | |
| Ramp Time | 0-60min |
| Outer covering protection grade | IP22 |
| Maximum limited pressure during single fault condition | 30cmH2O |
| Maximum flow | 125L/min |
| Integrated Humidifier Heater setting | 1-6 Level |
| Recommended mask leakage | 20 to 40 litres /min at 10 cmH2O |
| Weight | 2 kg |
|---|---|
| Dimensions | 20 × 15 × 20 cm |
