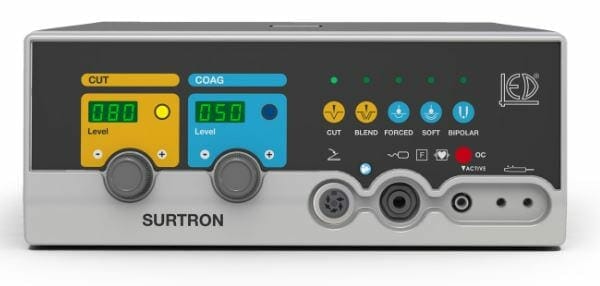

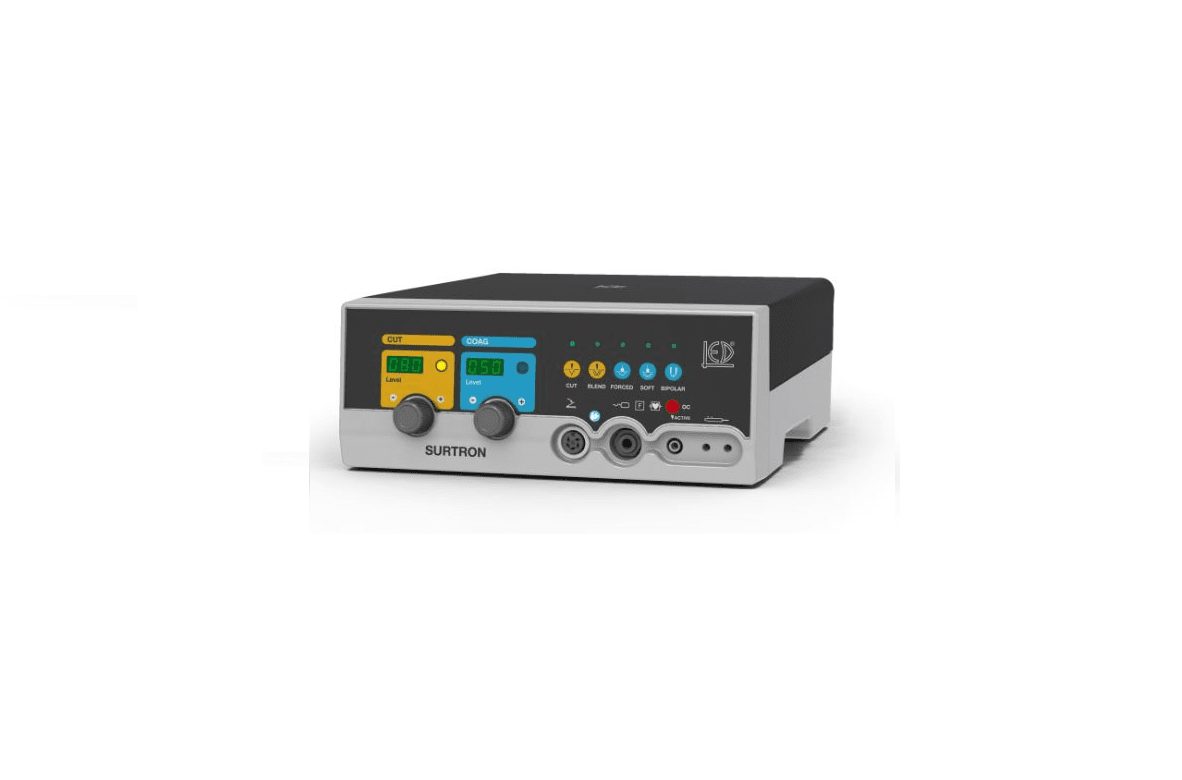

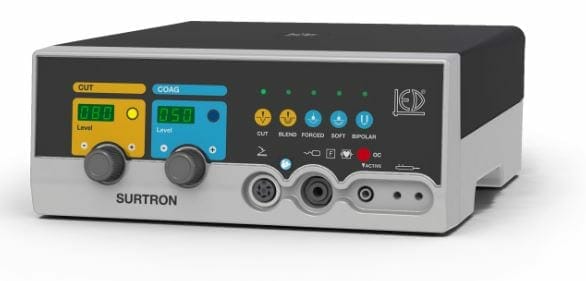

LED SURTRON 80W Diathermy Electrosurgical Unit INTRODUCTION:
SURTRON® is a radio surgical unit that is suitable for light and medium surgery.
LED SURTRON 80W Diathermy Electrosurgical Unit FEATURES:
- SURTRON®, by means of the selections of the unit’s performance, allows pure cut CUT, coagulated cut BLEND, superficial coagulation COAG FORCED, deep coagulation, in absence of carbonization, COAG SOFT and, with a special adapter, bipolar coagulation BIPOLAR. The digital reading of the delivered power and the operative function’s monitoring by the microcontroller guarantees the absolute reliability of working conditions.
- SURTRON®allows a highly professional surgery thanks to the ergonomic and safety solutions normally utilised. It is continually monitored the connection of neutral electrode and, if a split neutral electrode is used, the neutral electrode to patient contact.The possibility to control the output functions, as well as the output power level, by the handle, allows to implement the surgical operation without turning away the surgeon attention from the surgical field.
LED SURTRON 80W Diathermy Electrosurgical Unit CONTROLS:
- Plate/patient circuit watching
- Delivery time watching
- Output power watching
- Self analysis
LED SURTRON 80W Diathermy Electrosurgical Unit MAIN FEATURES:
| SURTRON® | 80 | 120 | 160 |
| Maximum output power CUT (W) | 80 → 250Ω | 120 → 250Ω | 160 → 250Ω |
| Maximum output power BLEND (W) | 60 → 200Ω | 90 → 200Ω | 120 → 200Ω |
| Maximum output power FORCED COAG (W) | 50 → 150Ω | 80 → 150Ω | 100 → 150Ω |
| Maximum output power SOFT COAG (W) | 40 → 100Ω | 60 → 100Ω | 80 → 100Ω |
| Maximum output power BIPOLAR CUT(W) | 30 → 100Ω | 40 → 100Ω | 60 → 100Ω |
| Working frequency | 600 kHz | 600 kHz | 600 kHz |
| Mains voltage (Vac) | 115 –230 | 115 –230 | 115 –230 |
| Mains frequency (Hz) | 50-60 | 50-60 | 50-60 |
| Electrical class (EN60601-1) | I CF | I CF | I CF |
| Neutral electrode | -F- | -F- | -F- |
| Weight Kg | 7 | 7 | 7 |
| Size HxLxD mm | 260x110x265 | 260x110x265 | 260x110x265 |
STANDARD ACCESSORIES:
| SURTRON® | 80 | 120 | 160 |
| Electrosurgical unit code | 10100.10A | 10100.20A | 10100.30A |
| Cable for neutral plate disposable/5365 | •/1 | •/1 | •/1 |
| Kit of assorted electrode length 5cm (10pcs) | •/1 | •/1 | •/1 |
| Manual of instructions | •/1 | •/1 | •/1 |
| Not water-proof foot switch | •/1 | •/1 | •/1 |
| Power supply cable 3x1mm SIE-IEC – 2mt | •/1 | •/1 | •/1 |
| Reusable handle with finger switches | •/1 | •/1 | •/1 |
| Steel neutral electrode patient plate | •/1 | •/1 | •/1 |
